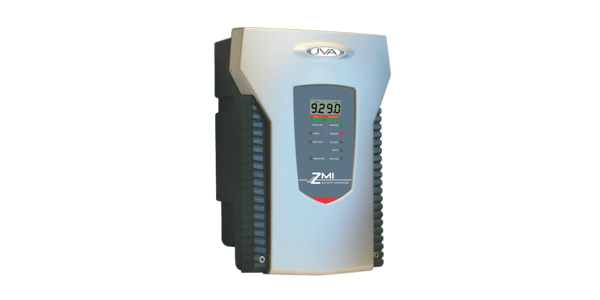

JVA ZM1 Monitoring Unit
JVA ZM1 Monitoring Unit

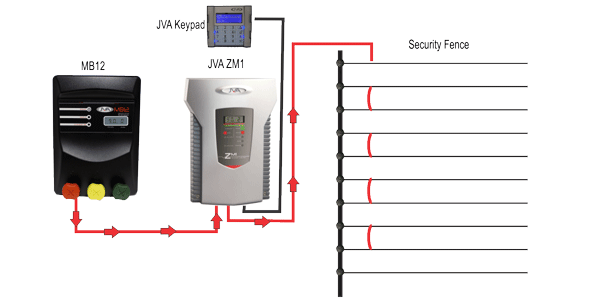

The ZM1 is designed to be coupled with any standard electric fence energizer below 36 joules to power and monitor an electric fence. It can control large energizers, making it ideal on large agricultural, game and border security fences. The combination of the ZM1 and the energizer operates in the same way as a single JVA Z series energizer, with the exception that the pulse power level of the energizer cannot be modified.
The ZM1 monitors the live feed line from the energizer to the fence and determines if the fence is working properly, by measuring the voltage, current, and therefore power, flowing to the fence.
JVA ZM1 Monitoring Unit
Built-in battery charger plus connection for larger external alternative
Monitors fence voltage and current to trigger an alarm if current rises or voltage falls
LCD current display (load)
Does not require a return line
LCD earth voltage display
Controls 12V DC feed to energizer
LCD voltage display for out and return voltage
Siren and Strobe switched 12V DC outputs 3 on-board relays with many programmable functions.
Remote on/off or key switch
Gate contact input
Battery voltage measurement
Start and end of fence monitoring
Run from 16Vac or 12V DC external source
Controllable and programmable
Able to be monitored via PC (using Perimeter Patrol software)
JVA ZM1 Monitoring Unit
