JVA Dual Zone Z Range Energizers

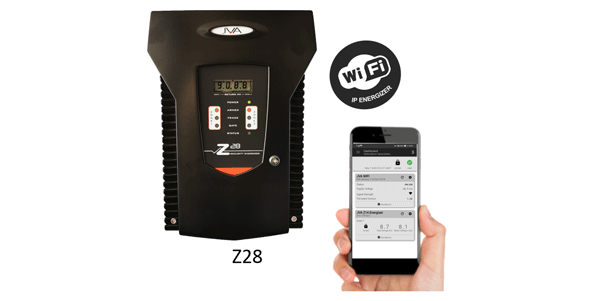

JVA Z25 & Z28 Energizers

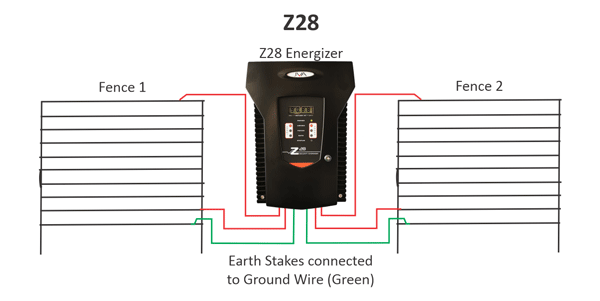

The JVA Z25 & Z28 Two‐Zone Security Energizer with LCD display are top‐of‐the‐range high-power energizers ideal for installations where better zone identification is required. The Z25 & Z28 can meet all requirements from longer wall‐top fences to industrial and high-profile installations. The energizers have an LCD display showing return voltages for each zone, battery condition and fence programming settings. These units are fully compatible with the optional Z‐Range keypad and when wired up to a keypad are fully programmable.

These energizers can be linked with other Z‐Range energizers to synchronize pulses and become a multi‐zone group for larger multi‐zone sites. The Z25 & Z28 can be controlled by a PC or up to 3 keypads, or 1 keypad can control up to 14 Z - Range energizers.

JVA Z25 & Z28 Energizers

High‐Voltage, Dual‐Zone Fence Monitor triggers alarm when live wires are tampered with
Earth Wire Monitor triggers alarm when the earth wires are tampered with
Dynamic Voltage Monitoring minimizing arcing and false alarms while maximizing power and battery life
2 Standard Fully Programmable Relays plus option for 3 more on request
Up to 18‐Hour Monitoring in the event of a power failure
LCD Voltage Return Display for both Zones
Gate Monitor input to monitor the gate
High and low power options
2.5 & 4 Joules maximum output energy per Zone
Energizer supplied with secure Key Switch Operation
Diagnostic Mode
Compliant with IEC60335‐2‐76
Built‐in Lightning and Surge Protection
Keypad Compatible
Programmable to Bi-polar or Standard
Pulse Synchronisation in group mode
Anti-tamper option programmable on request
Internal Battery Backup in case of power failure

JVA Z25 & Z28 Energizers
