JVA Single Zone Z Range Energizers

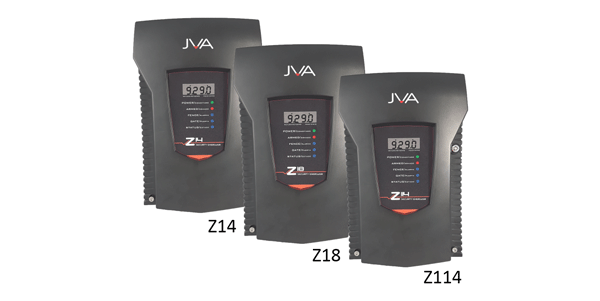

JVA Z14, Z18 and Z114 Energizers

The JVA Z-Range of One‐Zone Security Energizers with LCD displays are top‐of‐the‐range energizers meeting all requirements from the basic home security fence to fully integrated high profile installations. These energizers have LCD displays showing out and return voltages, battery condition and fence programming settings.

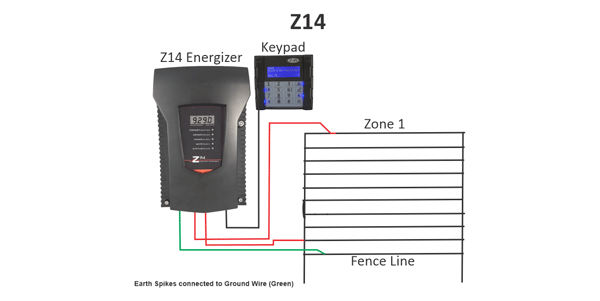

The units are fully compatible with the Z‐Range keypad and when wired up to a keypad are fully programmable. The energizers can be networked with other Z‐Range energizers to synchronise pulses and become a multi‐zone group for larger sites where many zones are required. These energizers can be controlled by a PC or up to 3 keypads, or 1 keypad up to 14 Z‐Range energizers.

JVA Z14, Z18 and Z114 Energizer

High‐Voltage, Single‐Zone Fence Monitor triggers alarm when live wires are tampered with
Earth Wire Monitor triggers alarm when the earth wires are tampered with
Dynamic Voltage Monitoring minimizing arcing and false alarms while maximizing power and battery life
2 Standard Fully Programmable Relays plus option for 3 more on request
Up to 24‐Hour Monitoring in the event of a power failure
LCD Voltage Out and Return Display
Gate Monitor input to monitor the gate
High and low power options
4, 8 and 14 Joules maximum output energy respectively
Energizer supplied with secure Key Switch Operation
Diagnostic Mode
Compliant with IEC60335‐2‐76
Built‐in Lightning and Surge Protection
Keypad Compatible

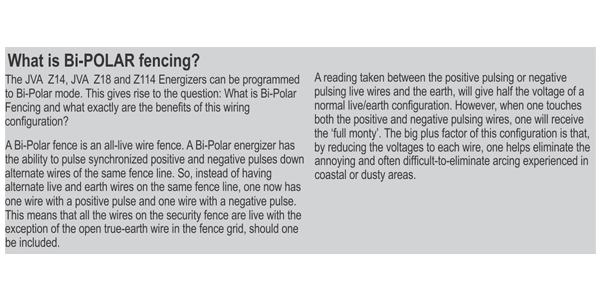

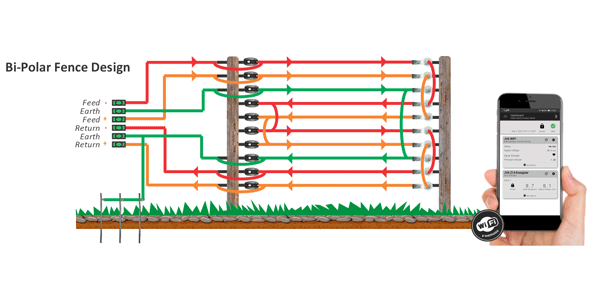

Programmable to Bi-polar or Standard
Pulse Synchronisation in group mode
Anti-tamper option programmable on request
Internal Battery Backup in case of power failure
