JVA High Voltage Monitors

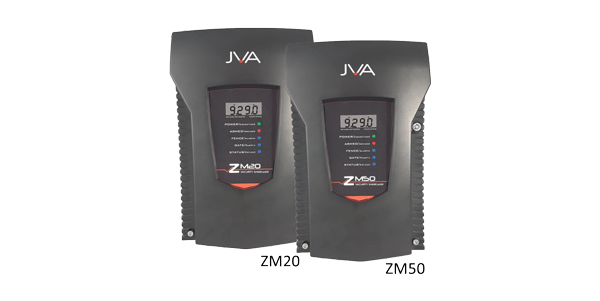

JVA ZM20 & ZM50 Sector Fence High Voltage Monitors

The JVA ZM20 and ZM50 are advanced security electric fence multi-sector monitoring systems, enabling the partitioning of an electric security fence into 20 or 50 programmable sectors, respectively. This ensures accuracy in detecting the locality of a fault on the fence line which in turn allows for quicker targeted responses and/or better camera positioning.

These systems are ideal where multiple energizer placement at a site is not possible. A single energizer in one location can then partition a single high voltage zone into 20 or 50 manageable sectors.

JVA ZM20 & ZM50 Sector Fence High Voltage Monitors

TCP/IP Connectivity with optional LAN Interface Board
Reduces the cost of multi-zone systems

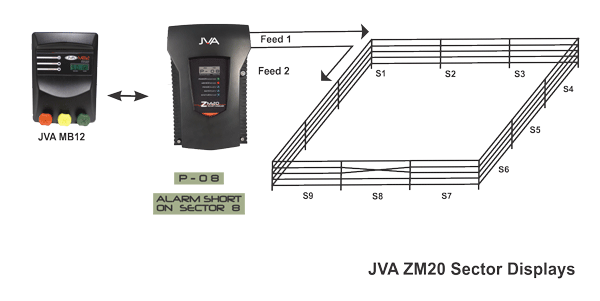

Accurately divides a High Voltage Fence Zone into up to 20 or 50 Sectors
Can be monitored via Keypad or a PC, using Perimeter Patrol Software, or any Web enabled device, with the addition of a JPAE212 Web Server. With e-mail, alarms can be integrated into third party security management systems at a variety of levels
Dual HV Feed, increases deterrent and reduces the effect of a cut wire
The JVA ZM Monitor can be powered by any JVA electric fence energizer
Monitor 1 – 20 or 1 – 50 fence loops up to 8km wire length or maximum loop resistance of 1000 ohms
2 – 20 or 2 – 50 Programmable Sectors
Cut or bridge alarm on sudden reduction in current
Siren and Strobe switched 12V DC outputs
Built-in charger and space for a 12V 7Ah backup battery
